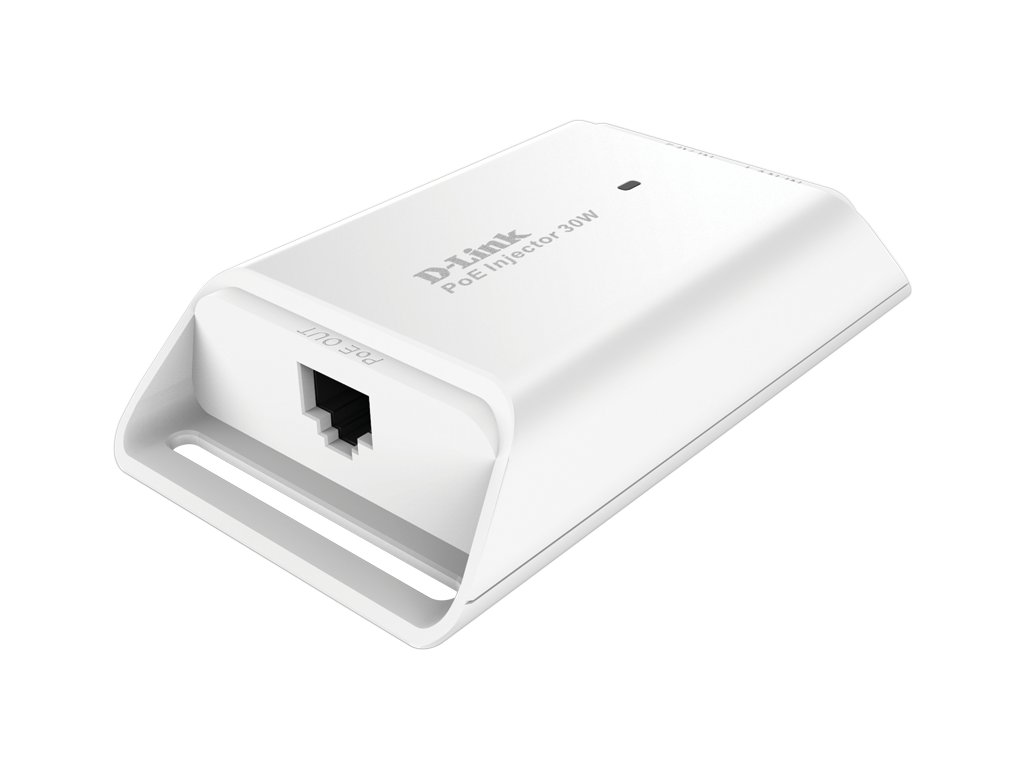

D-Link DPE-301GI 1-Port Gigabit 30W PoE+ Injector

Podrobný popis

OVERVIEW

*The IEEE 802.3at (PoE+)/802.3af (PoE) compliant DPE-301GI Gigabit PoE+ Injector is designed to supply data and up to 30 watts of power to PoE-enabled devices such as network cameras and wireless access points.

*The DPE-301GI gives you the ability to mount your PoE device virtually anywhere in a building, such as on ceilings or near entryways, by eliminating the need for a nearby power outlet.

*D-Link's DPE-301GI combines electrical power with a Gigabit network connection to produce a Gigabit Power over Ethernet (PoE) signal for transmission over a single Ethernet cable, to up to 100 metres1 distance.

*Examples where the DPE-301GI is ideal include powering network devices such as professional network cameras with pan/tilt/zoom, night vision or internal heating/cooling features, as well as the latest wireless access points that support the high throughput 802.11ac standard.

TECHNICAL SPECS

Ports

PoE + Data Port (out)

*Supports half/full-duplex operation

*10/100/1000BASE-T port

*IEEE 802.3 compliant

*IEEE 802.3u compliant

*IEEE 802.3at compliant

*IEEE 802.3af compliant

*IEEE 802.3ab compliant

Data Port (in)

*Supports half/full-duplex operation

*IEEE 802.3 compliant

*IEEE 802.3u compliant

*IEEE 802.3ab compliant

*10/100/1000BASE-T port

LED Indicators

*Blue: Power On

*Green: Link On

Physical

Dimensions (L x W x H)

*109.8 x 62.2 x 24.5 mm

Weight

*65 grams

Power

*Power Adapter: 55 V / 0.6 A

*Max Consumption: 32.4 watts

*Output: 0.6 A at 55 V

Temperature

*Operating: -10 to 50 °C

*Storage: -30 to 70 °C

Humidity

*Operating: 5% to 95% non-condensing

*Storage: 5% to 95% non-condensing

Certifications

*CE

*FCC

*VCCI

*RCM

*RoHS

*BSMI
