TP-Link Archer VR300 Bezdrátový VDSL/ADSL modem a router AC1200

Podrobný popis

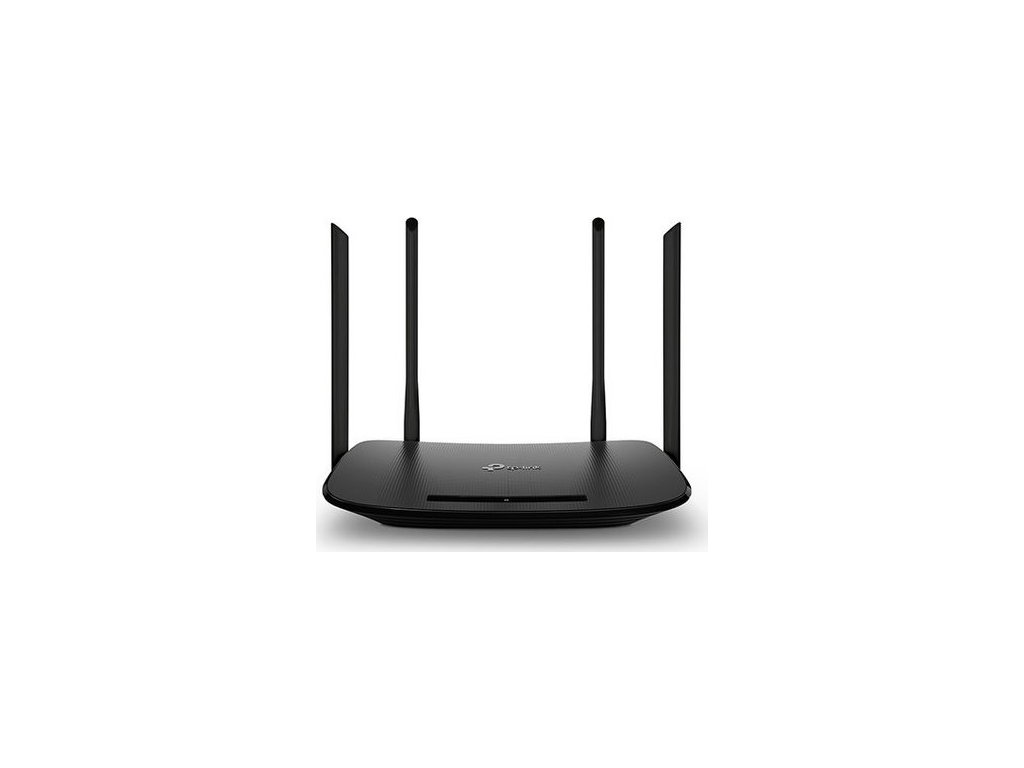

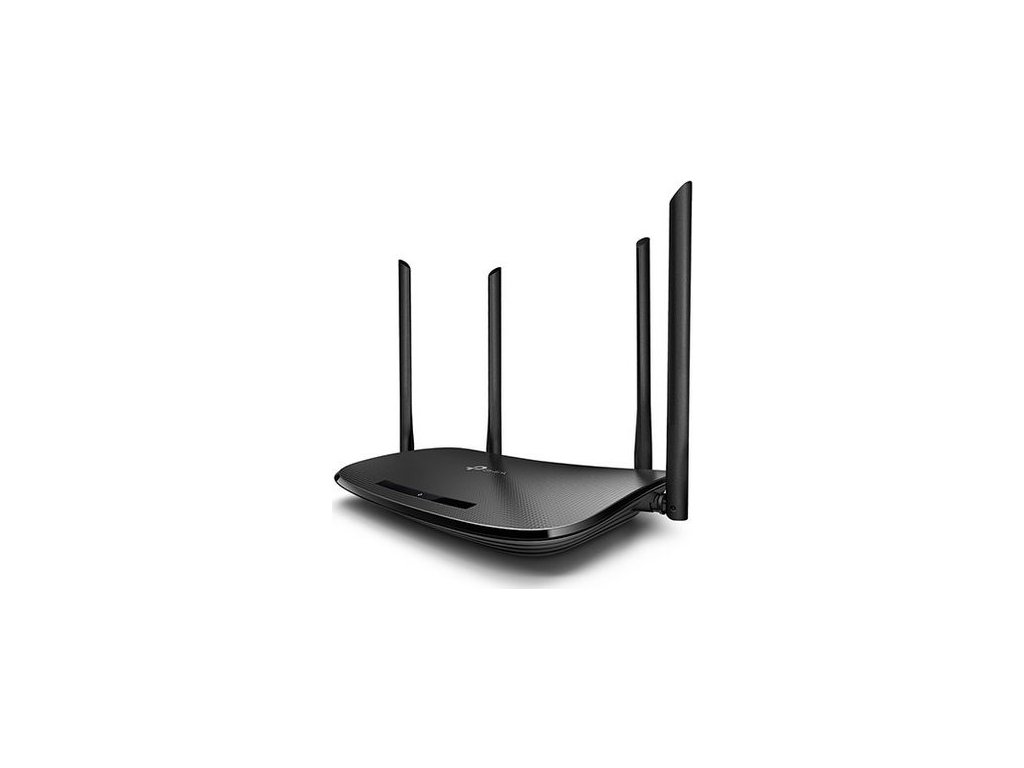

AC1200 Wireless VDSL/ADSL Modem Router

Archer VR300

Popis

*Parental Controls: manage responsible internet access for your children

*Guest Network|: provides separate access for guests while securing the home network

*Firewall Security: supports DoS, SPI Firewall, IP Addressing/Domain Filter, IP/MAC Address Binding

*Quality of Service: prioritizes network traffic by device or application

*IPTV IGMP Proxy/Snooping: supports Bridge and Tag VLAN for smooth IPTV application

*IPv6: compatible with IPv6 (Internet Protocol version 6)

*Multilingual Interface: provides hassle-free configuration in six languages (EN/DE/IT/TR/RU/PO)

Technická specifikace

HARDWARE FEATURES

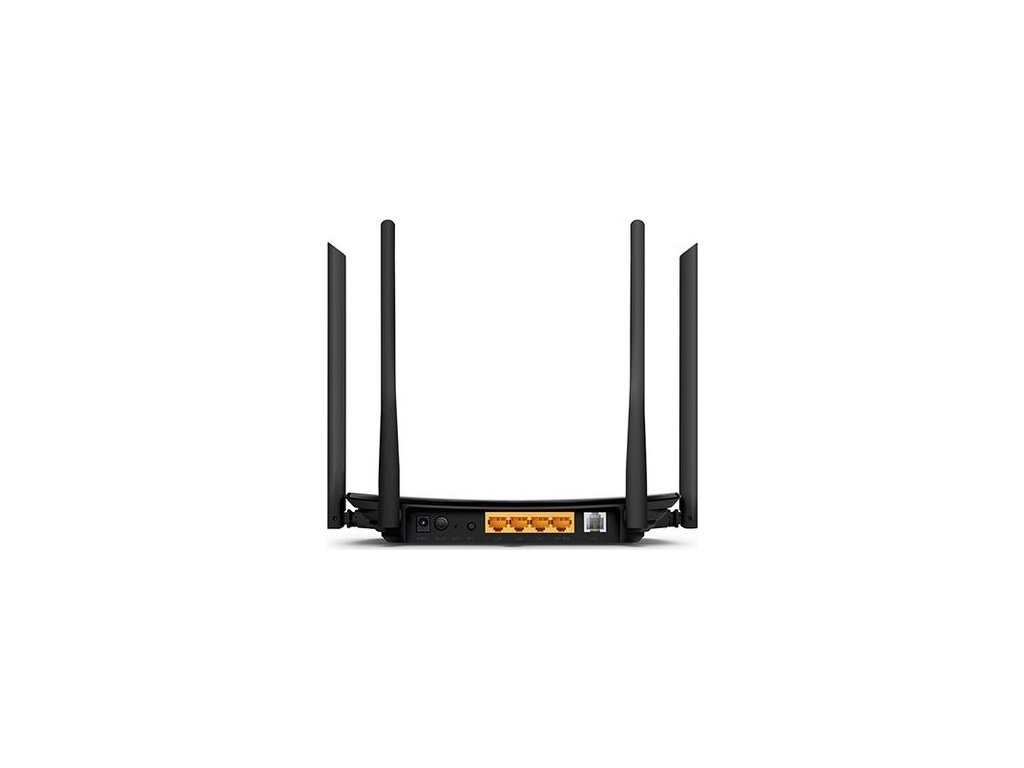

Interface

*3 10/100 RJ45 LAN Ports

*1 10/100 RJ45 LAN/WAN Port

*1 RJ11 Port

Button

*WPS Button

*Power On/Off Button

*Reset Button

Power Supply

*12VDC/1A

VDSL2 Standards

*ITU G.993.2, Up to 17a pro¬le (POTS)

*ITU-T G.993.5 (G.vector)

*ITU-T G.998.4 (G.INP)

ADSL Standards

*Full-rate ANSI T1.413 Issue 2,

*ITU-T G.992.1(G.DMT),

*ITU-T G.992.2(G.Lite),

*ITU-T G.994.1 (G.hs),

*ITU-T G.995.1

ADSL2 Standards

*ITU-T G.992.3 (G.DMT.bis),

*ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards

*ITU-T G.992.5

Dimensions ( W x D x H )

*385*290*76mm

Antenna Type

*4 fixed external antennas

WIRELESS FEATURES

Wireless Standards

*IEEE 802.11a/n/ac 5GHz,

*IEEE 802.11b/g/n 2.4GHz

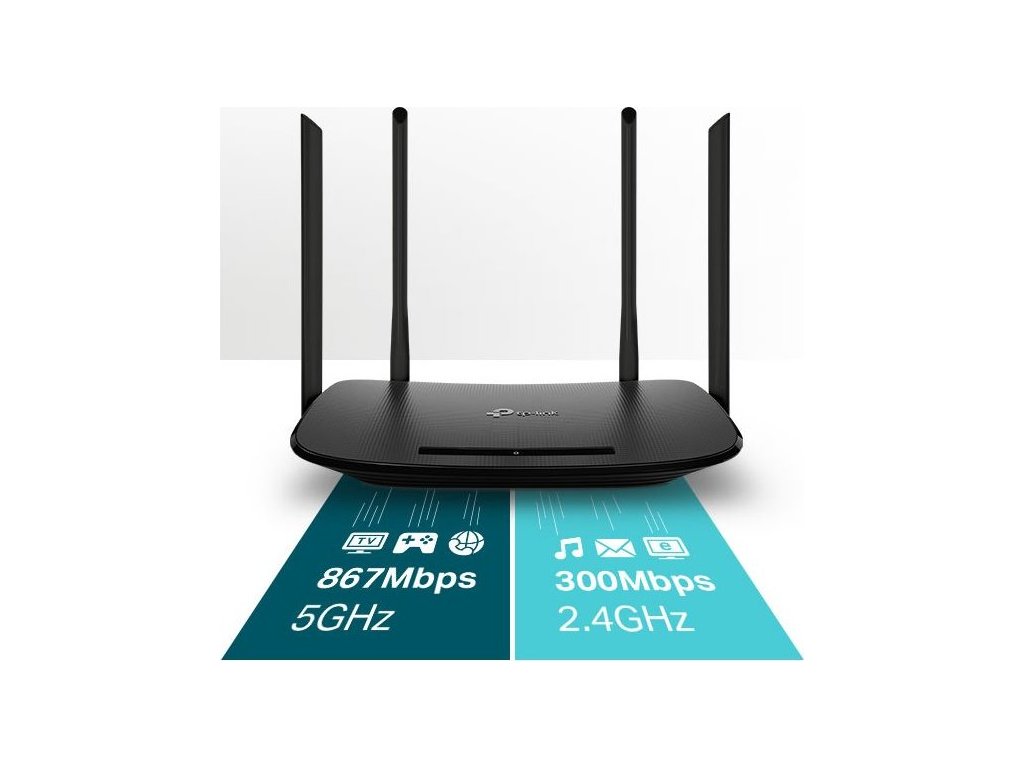

Wireless Speeds

*867Mbps at 5GHz

*300Mbps at 2.4GHz

Transmit Power

*2.4GHz <20dBm(EIRP)

*5GHz <23dBm(EIRP)

Wireless Functions

*Access Point / Wireless Bridge, Wireless Enable\Disable, SSID Broadcast Enable\Disable

Wireless Security

*WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions, QSS(WPS)

SOFTWARE FEATURES

Quality of Service

*ATM QoS, Bandwidth Control

Security

*NAT Firewall, Access Control, IP and MAC Address Binding

Operating Modes

*VDSL/ADSL Modem Router, Wireless Router

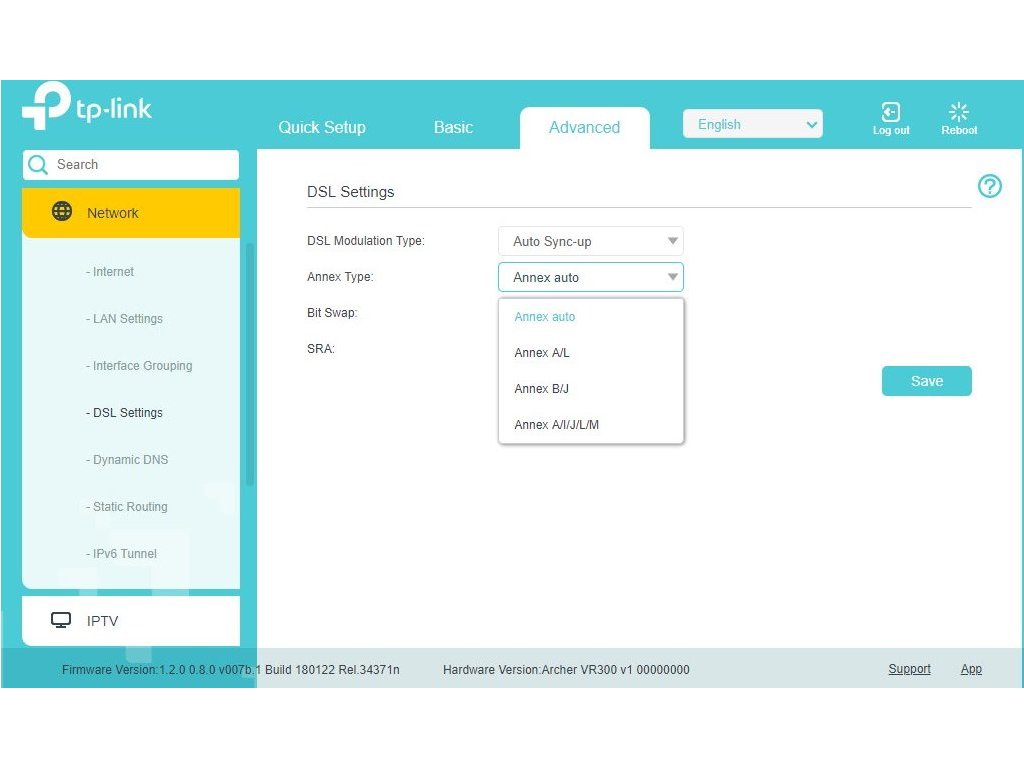

Management

*Web Based Con¬guration(HTTP), Remote management,

command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware

*Upgrade, Diagnostic Tools

DHCP

*Server, Client, DHCP Client List, Address Reservation, DHCP Relay

Port Forwarding

*Virtual Server, Port Triggering, DMZ, ALG, UPnP

Dynamic DNS

*DynDns, NO-IP

VPN Pass-Through

*PPTP, L2TP, IPSec Passthrough

Protocols

*Supports IPv4 and IPv6

ATM/PPP Protocols

*ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),

PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483

Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs

Advanced Functions

*Parental Control, Network Address Translation(NAT),

*Port Mapping(Grouping), Static Routing, RIP v1/v2(optional), DNS Relay,

*DDNS, IGMP V1/V2/V3

Guest Network

*2.4GHz guest network, 5GHz guest network

OTHERS

Certification

CE, RoHS, RCM

Package Contents ·

*AC1200 Wireless VDSL/ADSL Modem Router Archer VR300

*External Splitter

*RJ11 DSL Cable

*RJ45 Ethernet Cable

*Power Adapter

*Quick Installation Guide

System Requirements

*Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux

*Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser

*Subscription with an Internet Service Provider (for Internet access)

Environment

*Operating Temperature: 0?~40? (32? ~104?)

*Storage Temperature: -40?~70? (-40? ~158?)

*Operating Humidity: 10%~90% non-condensing

*Storage Humidity: 5%~90% non-condensing
