TP-Link EAP115 stropní AP/ Wi-Fi router/ 1x LAN/ 1x WAN / b/n/g/ 300 Mbps

Podrobný popis

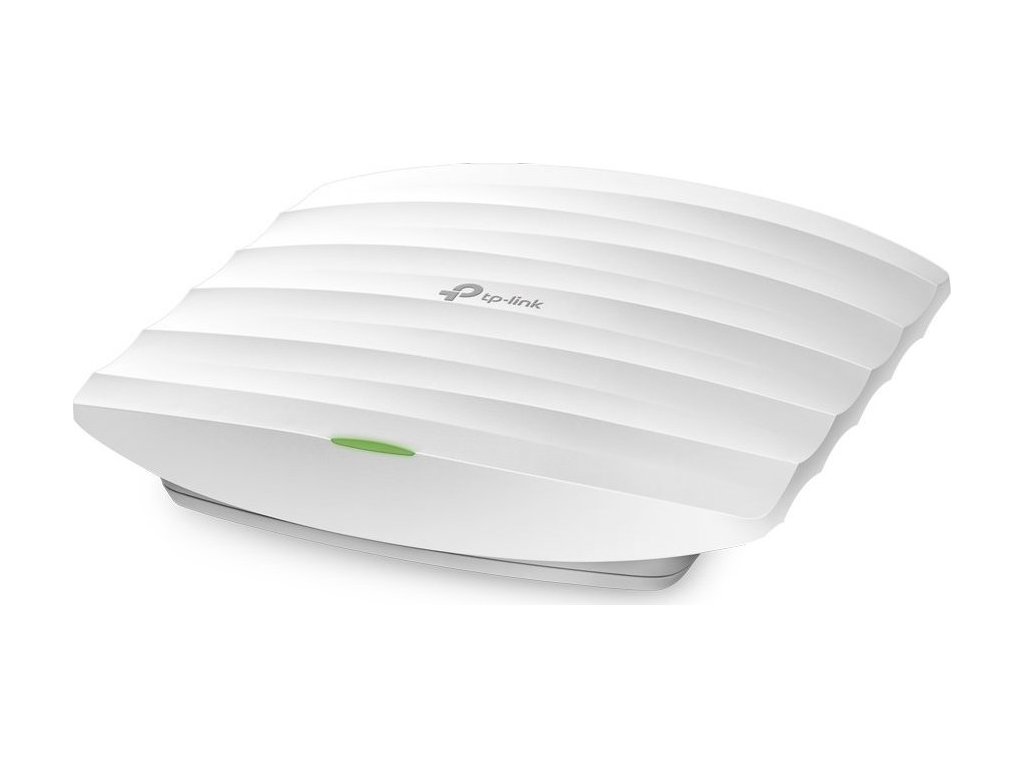

300Mbps Wireless N Ceiling Mount Access Point: EAP115

300Mbps Wireless N Ceiling Mount Access Point, Qualcomm, 300Mbps at 2.4GHz, 802.11b/g/n, 1 10/100Mbps LAN, 802.3af PoE Supported, Centralized Management, Load Balance, Rate Limit, Captive Portal, Cluster Mode, 2 Internal Antennas, Ceiling/Wall Mount

Krátké představení Omada SDN: https://www.youtube.com/watch?v=Veb8-o8EE6U

PŘEHLED

*Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs

*The user-friendly Cluster Mode allows manage up to 24 (EAP115) without requiring any extra hardware or software

*Supports Power over Ethernet (802.3af) for convenient and affordable installation

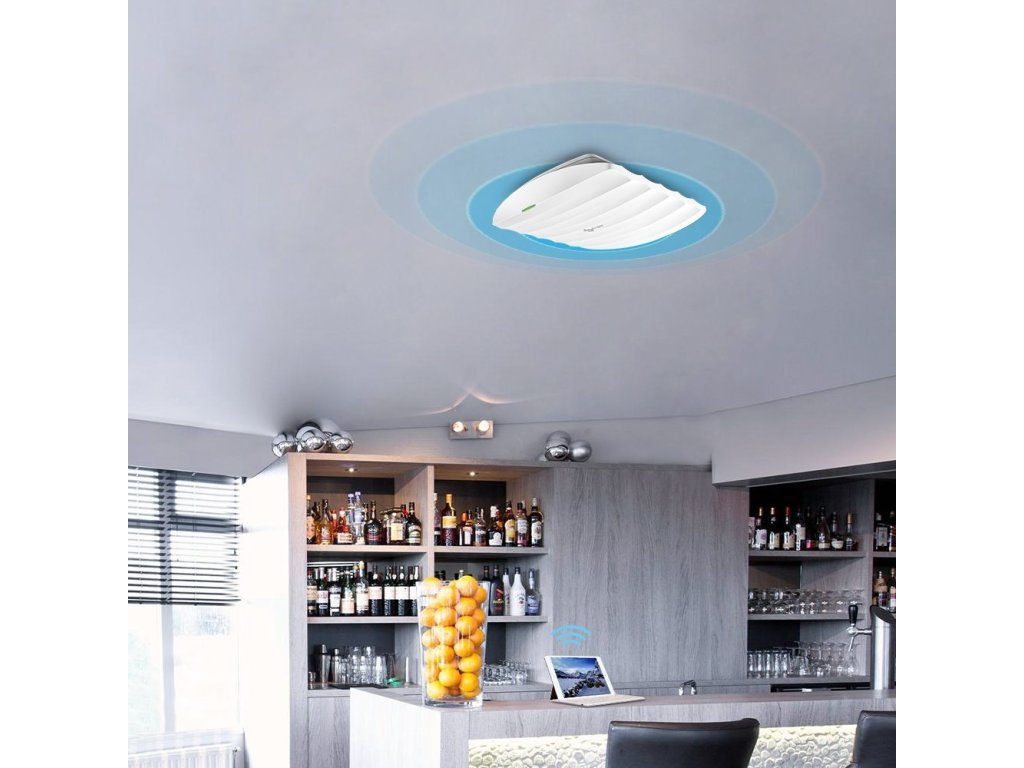

*Simple mounting design for easy attachment to a wall or ceiling

*Captive portal provides one convenient method of authentication for Wi-Fi guests

*Enterprise class Wi-Fi security help to decrease network security threats

*Multi-SSID divides multiple wireless networks for different user types

TECHNICKÁ SPECIFIKACE

Interface

* Fast Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)

Button

* Reset

Power Supply

* PoE or external 12VDC/1.0A power supply

Power Consumption

* 5W

Wireless Standards

* IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Dimensions ( W x D x H )

* 180*180*47.5mm

Antenna Type

* Internal 2* 3dBi Omni

Mounting

* Ceiling /Wall Mounting (Kits included)

Physical Security Lock

* Kensington Lock Slot

Watch Dog

* Yes

WIRELESS FEATURES

Wireless Standards

* IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

* 2.4-2.4835GHz

Signal Rate

* 11n: Up to 300Mbps(dynamic)

* 11g: Up to 54Mbps(dynamic)

* 11b: Up to 11Mbps(dynamic)

Reception Sensitivity

* 300M: -71dBm@10% PER

* 150M: -75dBm@10% PER

* 54M: -78dBm@10% PER

* 11M: -93dBm@8% PER

* 6M: -92dBm@10% PER

* 1M: -96dBm@8% PER

Wireless Functions

* Multiple SSIDs (Up to 8 SSIDs)

* Enable/Disable Wireless Radio

* Automatic Channel Assignment

* Transmit Power Control (Adjust Transmit Power on dBm)

* QoS(WMM)

* Rate Limit

* Reboot Schedule

* Wireless Schedule

* Wireless Statistics based on SSID/AP/Client

Wireless Security

* Captive Portal Authentication

* Access Control

* Wireless Mac Address Filtering

* Wireless Isolation Between Clients

* SSID to VLAN Mapping

* Rogue AP Detection

* 802.1X Support

* 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

Transmission Power

* CE:

* <20dBm

* FCC:

* <26dBm

* MANAGEMENT

Auranet Controller Software

* Yes

Cluster Mode

* Yes

Email Alerts

* Yes

LED ON/OFF Control

* Yes

Management MAC Access Control

* Yes

SNMP

* v1,v2c

System Logging Local/Remote Syslog

* Local/Remote Syslog

Telnet

* Yes

Web-based Management

* HTTP/HTTPS

OTHERS

Certification

* CE, FCC, RoHS

Package Contents

* 300Mbps Wireless N Ceiling Mount Access Point EAP115

* Power Adapter

* Mounting Kits,

* Installation Guide

System Requirements

* Microsoft Windows 10/8/7/Vista/XP

Environment

* Operating Temperature: 0°C~40°C

* Storage Temperature: -40°C~70°C

* Operating Humidity: 10%~90% non-condensing

* Storage Humidity: 5%~90% non-condensing
