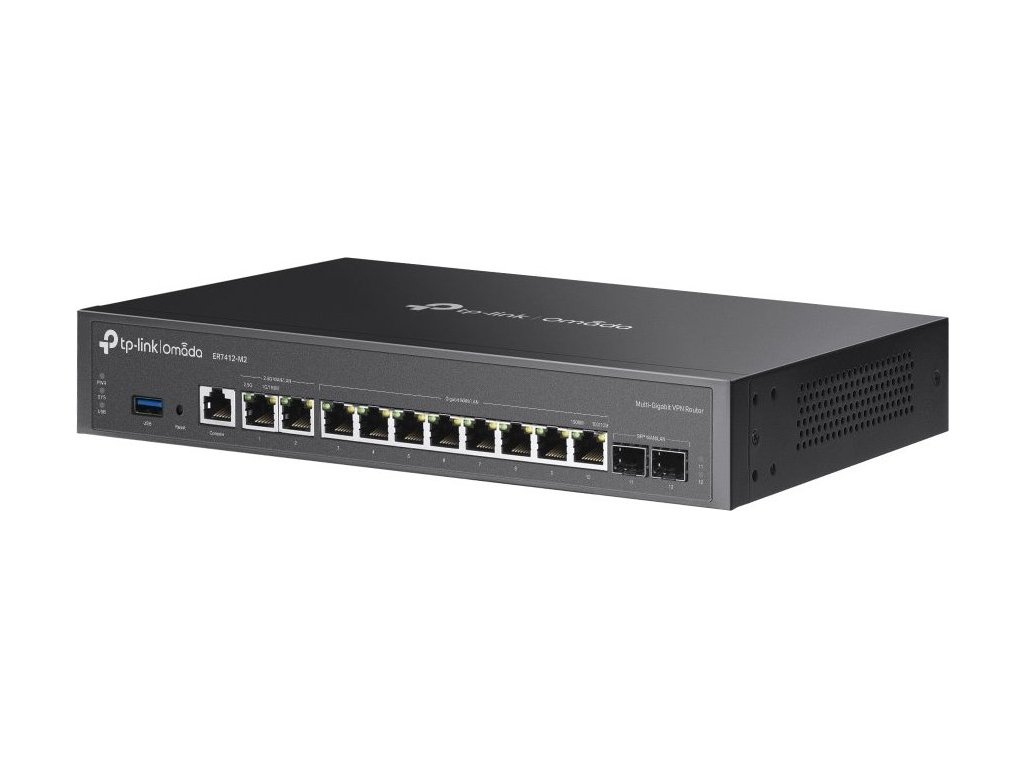

TP-Link ER7412-M2 Omada VPN Router, 2× 2.5G WAN/LAN, 2× Gigabit SFP WAN/LAN, 8× Gigabit WAN/LAN, 1x USB3.0

Podrobný popis

ER7412-M2

Omada Multi-Gigabit VPN Router

*Čtyřjádrový procesor @2.0GHz

*2× 2,5G RJ45 WAN/LAN porty

*10× Gigabit WAN/LAN porty (2× SFP, 8× RJ45)

*1× port USB 3.0 (podporuje úložiště USB a zálohování LTE pomocí LTE dongle)

*Až 11 WAN portů

*Multi-WAN Load Balancing zvyšuje míru využití vícelinkového širokopásmového připojení

*Vysoce zabezpečené SSL/ IPSec / GRE / WireGuard / PPTP / L2TP VPN & OpenVPN

*Centralizovaná správa cloudu přes web nebo aplikaci Omada

*Ochrana proti DoS, filtrování IP/MAC/URL, DPI a IPS/IDS pro lepší zabezpečení.

Specifikace

Bezpečnost

Access Control

*Source/Destination IP-Based ACL

*Stateful ACL

*IPv4/IPv6 ACL

*National Based ACL

Filtering

*WEB Group Filtering§

*URL Filtering

*Web Security

ARP Inspection

*Sending GARP Packets

*ARP Scanning

*IP-MAC Binding

Attack Defense

*TCP/UDP/ICMP Flood Defense

*Block TCP Scan (Stealth FIN/Xmas/Null)

*Block Ping from WAN

Hardware

Standards and Protocols

*IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE802.1q

*TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP

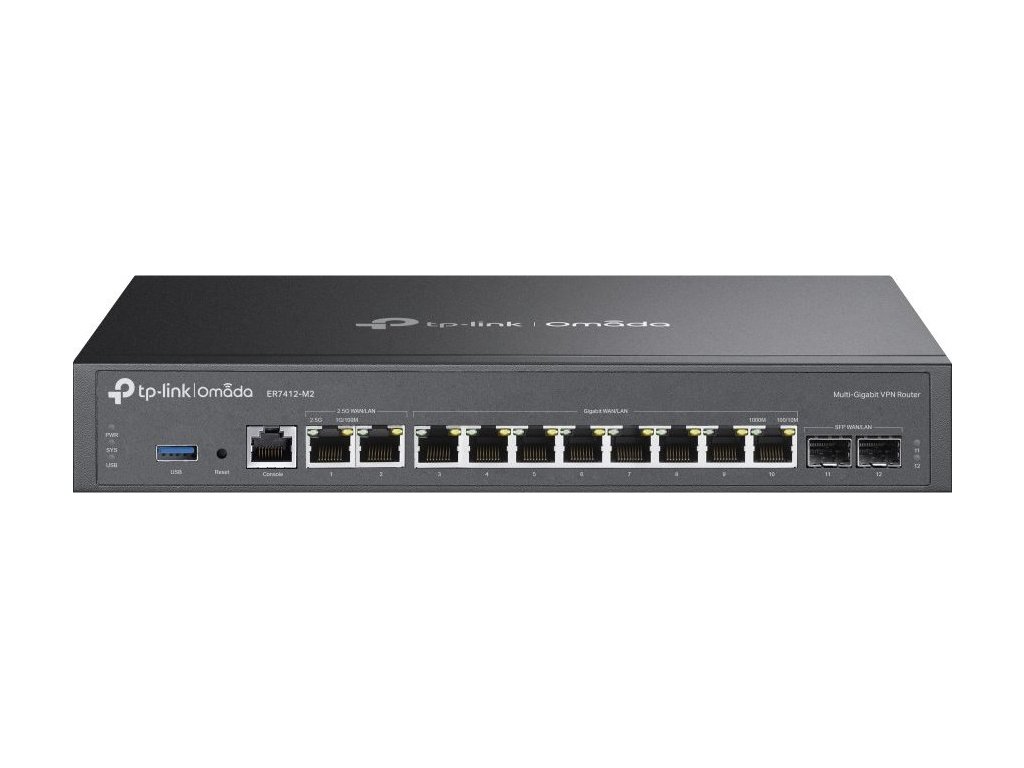

Interface

*1× 2.5G RJ45 WAN/LAN Port

*1× 2.5G RJ45 WAN/LAN Port

*2× Gigabit SFP WAN/LAN Ports

*8× Gigabit RJ45 WAN/LAN Ports

*1× RJ45 Console Port

*1× USB 3.0 Port (Supports USB storage, and LTE backup with LTE dongle)

Network Media

*10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

*100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)

*1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)

*2500BASE-T: UTP category 5e, 6 cable (Max 100 m)

Button

*Reset Button

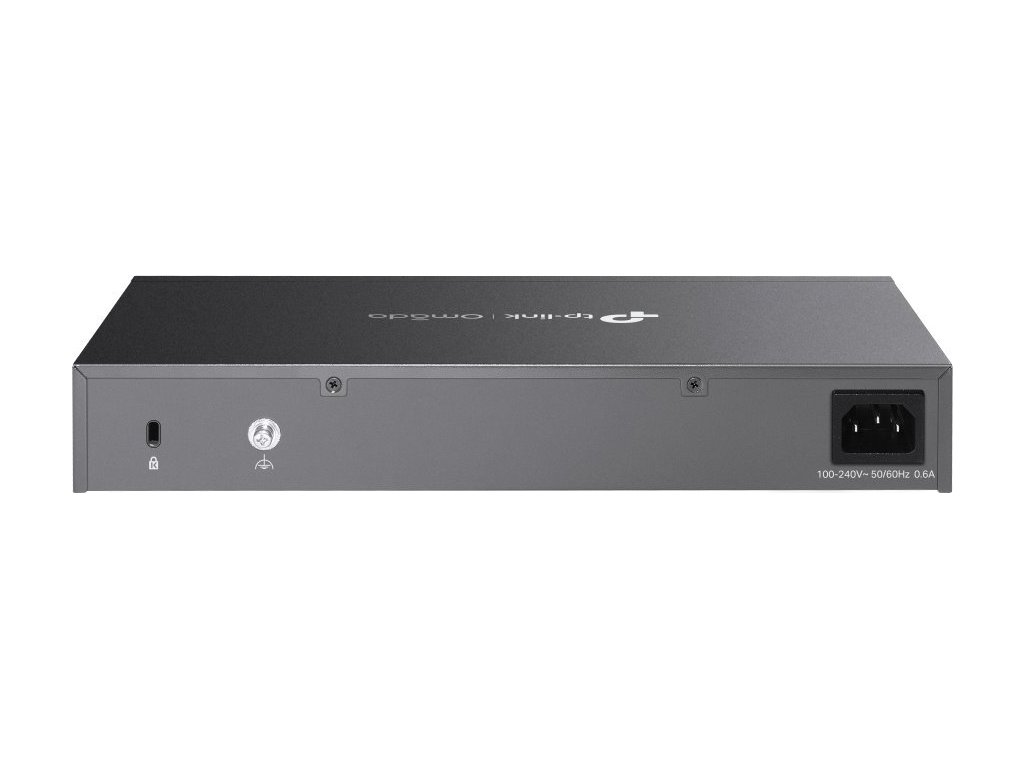

Power Supply

*100–240 VAC, 50/60 Hz

Flash

*128MB NAND

DRAM

*1 GB DDR4

Dimensions ( W x D x H )

*294×180×44 mm

Protection

*4 kV surge protection

Enclosure

*Steel

Mounting

*Desktop

*Rackmountable

Max Power Consumption

*18.5W (With USB 3.0 connected)

Základní funkce

WAN Connection Type

*Static IP/Dynamic IP

*PPPoE (supports MRU Configuration)

*PPTP

*L2TP

*Mobile Broadband: 4G/3G modem for backup via USB port

MAC Clone

*Modify WAN/LAN MAC Address

DHCP

*DHCP Server

*DHCPv6 PD Server (only in Standalone Mode)

*DHCP Options Customization

*DHCP Address Reservation

*Multi-IP Interfaces

*Multi-Net DHCP

IPv6

*StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode

VLAN

*802.1Q VLAN

IPTV

*IGMP v2/v3 Proxy, Custom Mode, Bridge Mode

Pokročilé funkce

Advanced Routing

*Static Routing

*Policy Routing

*RIP (available in Standalone Mode)

*OSPF (available in Standalone Mode)

Bandwidth Control

*IP/Port-based Bandwidth Control

Load Balance

*Intelligent Load Balance

*Application Optimized Routing

*Link Backup (Timing, Failover)

*Online Detection

NAT

*One-to-One NAT

*Multi-Net NAT

*Virtual Server

*Port Triggering

*NAT-DMZ

*FTP/H.323/SIP/IPSec/PPTP ALG

*UPnP

Session Limit

*IP-based Session Limit

VPN

GRE

*Only in Standalone Mode

SSL VPN

*80 Tunnels

IPsec VPN

*150 IPSec VPN Tunnels

*LAN-to-LAN, Client-to-LAN

*Main, Aggressive Negotiation Mode

*DES, 3DES, AES128, AES192, AES256 Encryption Algorithm

*IPsec Failover

*IKE v1/v2

*MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm

*NAT Traversal (NAT-T)

*Dead Peer Detection (DPD)

*Perfect Forward Secrecy (PFS)

PPTP VPN

*PPTP VPN Server

*PPTP VPN Client (15)

*150 Tunnels

*PPTP with MPPE Encryption

L2TP VPN

*L2TP VPN Server

*L2TP VPN Client (15)

*150 Tunnels

*L2TP over IPSec

OpenVPN

*OpenVPN Server

*OpenVPN Client (11)

*121 OpenVPN Tunnels

*"Certificate + Account" Mode

*Full Mode
