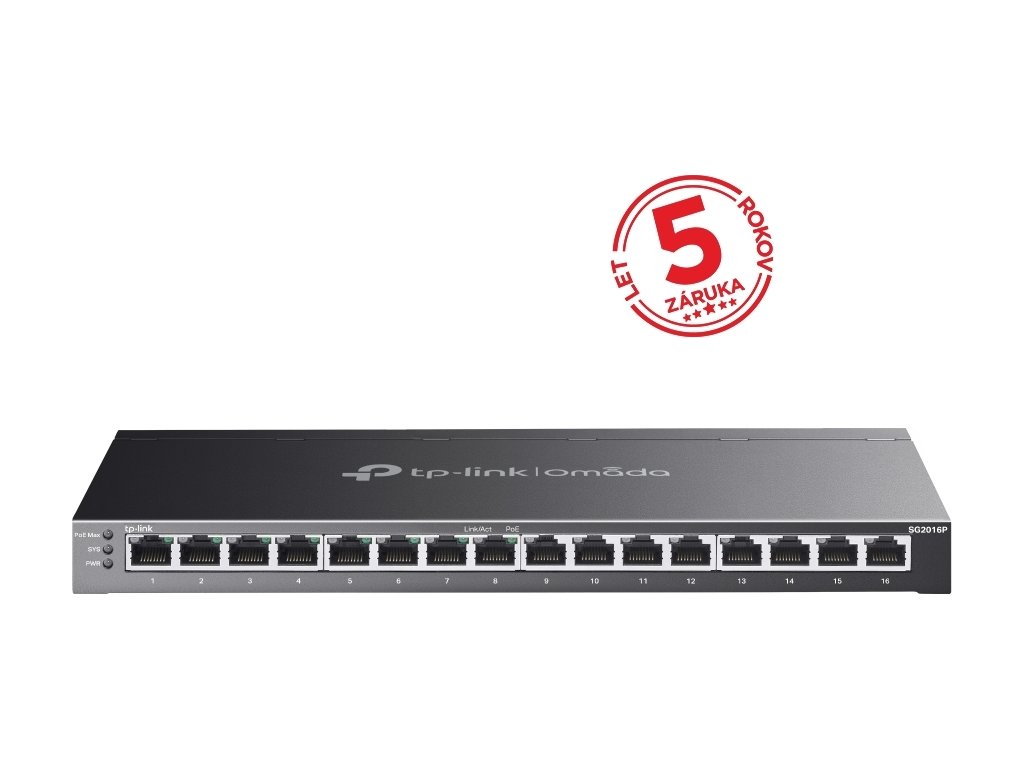

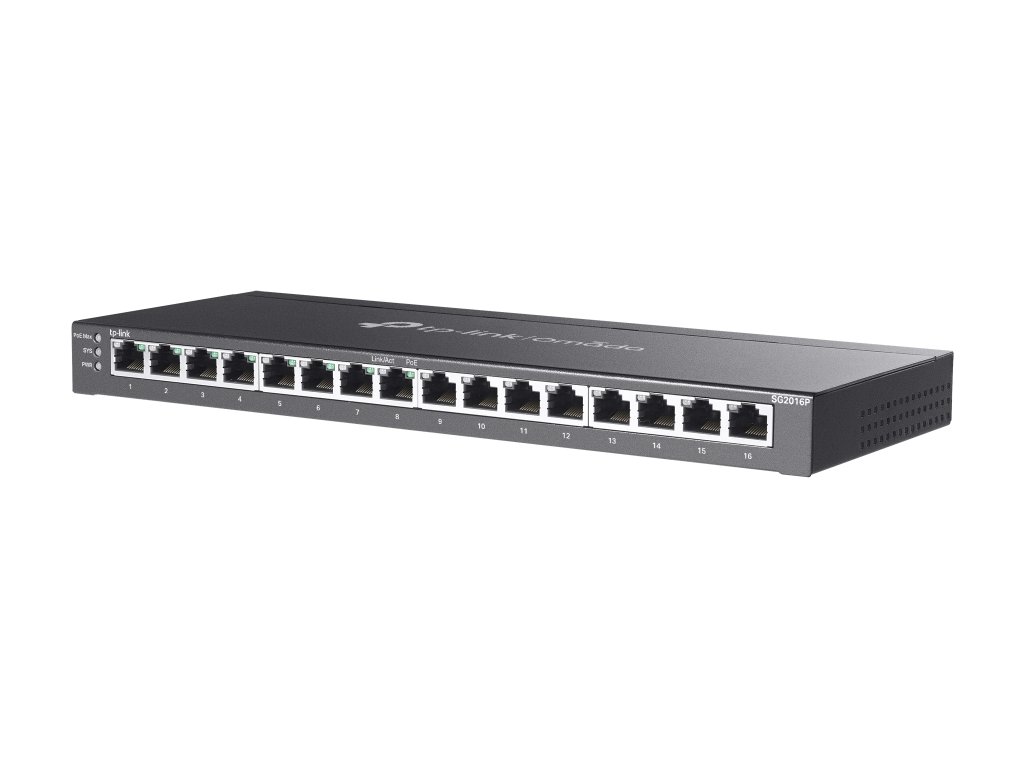

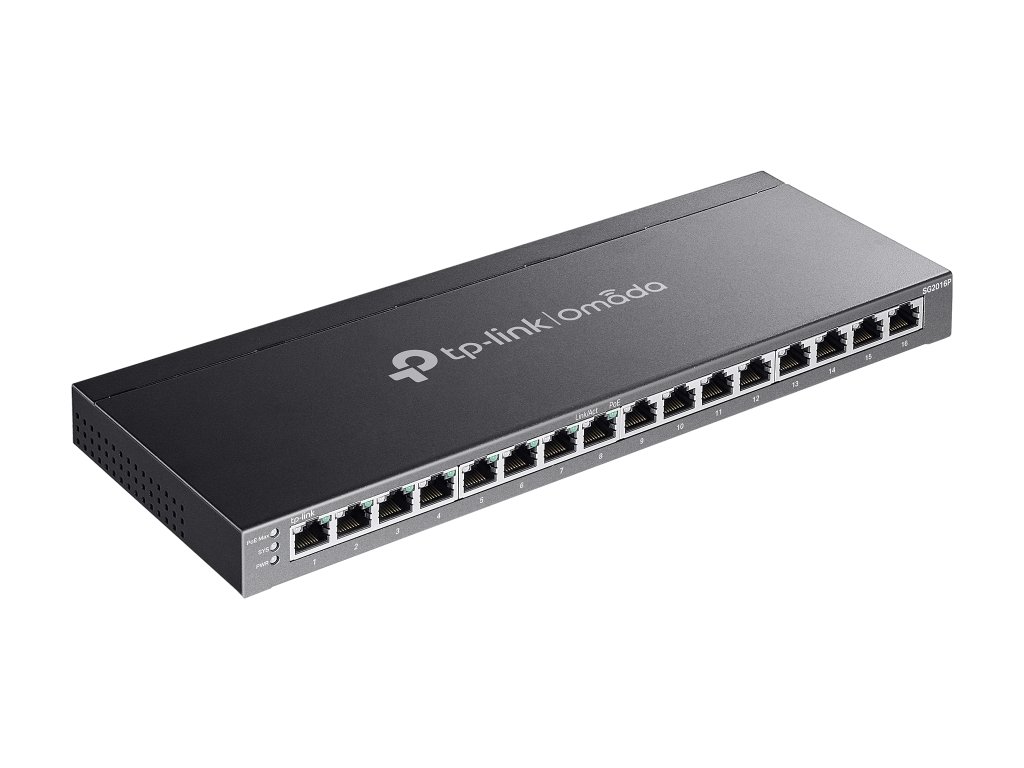

TP-Link SG2016P Smart Switch, 16x GLan, 8x PoE+, 120W, Omáda SDN

Podrobný popis

Model: TL-SG2016P

HARDWARE FEATURES

Standards and Protocols:

*IEEE 802.3i

*IEEE 802.3ab

*IEEE 802.3ad

*IEEE 802.3af

*IEEE 802.3at

*IEEE 802.3x

*IEEE 802.1d

*IEEE 802.1s

*IEEE 802.1w

*IEEE 802.1q

*IEEE 802.1p

*IEEE 802.1x

Interface:

*16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)

*Auto-Negotiation/Auto MDI/MDIX

Network Media

* 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

* 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

*Fanless

Power Supply

* External Power Adapter (Output: 53.5 VDC/ 2.43 A)

PoE Ports (RJ45)

* Standard: 802.3af/at compliant

* PoE Ports: 8 Ports

* Power Supply: 120 W*

Dimensions ( W x D x H )

*11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)

Max Power Consumption

*146.5 W (110 V/60 Hz) (with 120 W PD connected)

Max Heat Dissipation

*499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)

PERFORMANCE

Bandwidth/Backplane:

*16 Gbps

MAC Address Table:

*8k

Packet Buffer Memory:

*4.1 Mbit

Jumbo Frame:

*9 KB

SOFTWARE FEATURES

Quality of Service:

* 802.1p CoS/DSCP priority

* 8 priority queues

* Priority Schedule Mode

- SP (Strict Priority)

- WRR (Weighted Round Robin)

* Queue Weight Config

* Bandwidth Control

- Port/Flow-based Rating Limit

* Smoother Performance

* Storm Control

- Multiple Control Modes(kbps/ratio)

- Broadcast/Multicast/Unknown-Unicast Control

L2 and L2+ Features:

* DHCP Relay

- DHCP VLAN Relay

* DHCP L2 Relay

* Link Aggregation

- Static link aggregation

- 802.3ad LACP

- Up to 8 aggregation groups and up to 8 ports

per group

* Spanning Tree Protocol

- 802.1D STP

- 802.1w RSTP

- 802.1s MSTP

- STP Security: TC Protect, BPDU Filter/Protect,

Root Protect

* Loopback Detection

* Flow Control

- 802.3x Flow Control

* Mirroring

- Port Mirroring

- CPU Mirroring

- One-to-One

- Many-to-One

- Flow-Based

- Ingress/Egress/Both

* Device Link Detect Protocol (DLDP)

* 802.1ab LLDP/ LLDP-MED

L2 Multicast:

* 511 IPv4, IPv6 shared multicast groups

* IGMP Snooping

- IGMP v1/v2/v3 Snooping

- Fast Leave

- IGMP Snooping Querier

- Static Group Config

* Multicast VLAN Registration (MVR)

* Multicast Filtering

* MLD Snooping

- MLD v1/v2 Snooping

- Fast Leave

- MLD Snooping Querier

- Static Group Config

* Limited IP Multicast (256 profiles and 16 entries per profile)

IPv6 Support:

* IPv6 Dual IPv4/IPv6

* Multicast Listener Discovery (MLD) Snooping

* IPv6 neighbor discovery (ND)

* Path maximum transmission unit (MTU) discovery

* Internet Control Message Protocol (ICMP) version 6

* TCPv6/UDPv6

* IPv6 applications

- DHCPv6 Client

- Ping6

- Tracert6

- Telnet (v6)

- IPv6 SNMP

- IPv6 SSH

- IPv6 SSL

- Http/Https

- IPv6 TFTP

VLAN:

* VLAN Group

- Max. 4K VLAN Groups

* 802.1Q tag VLAN

* MAC VLAN: 12 Entries

* Protocol VLAN

* GVRP

* Voice VLAN

Access Control List:

* Support up to 230 entries

* Time-Range

- Time Slice

- Week Time-Range

- Absolute Time-Range

- Holiday

* Time-based ACL

* MAC ACL

- Source MAC

- Destination MAC

- VLAN ID

- User Priority

- Ether Type

* IP ACL

- Source IP

- Destination IP

- IP Protocol

- TCP Flag

- TCP/UDP Source Port

- TCP/UDP Destination Port

- DSCP/IP TOS

* IPv6 ACL

* Combined ACL

* Rule Operation

- Permit/Deny

* Policy Action

- Mirror

- Rate Limit

- Redirect

- QoS Remark

* ACL Rules Binding

- Port Binding

- VLAN Binding

* Actions for flows

- Mirror (to supported interface)

- Redirect (to supported interface)

- Rate Limit

- QoS Remark

Security:

* AAA

* 802.1X

- Port-based authentication

- MAC (Host) based authentication

- Authentication Method includes PAP/EAP-MD5

- MAB

- Guest VLAN

- Support Radius authentication and accountability

* IP/IPv6-MAC Binding

- 512 Binding Entries

- DHCP Snooping

- DHCPv6 Snooping

- ARP Inspection

- ND Detection

* IP Source Guard

- 253 Entries

- Source IP+Source MAC

* IPv6 Source Guard

- 183 Entries

- Source IPv6 Address+Source MAC

* DoS Defend

* Static/Dynamic/Permanent Port Security

- Up to 64 MAC addresses per port

* Broadcast/Multicast/Unicast Storm Control

- kbps/ratio control mode

* Port Isolation

* Secure web management through HTTPS with

SSLv3/TLS 1.2

* Secure Command Line Interface (CLI)

management with SSHv1/SSHv2

* IP/Port/MAC-based access control

Advanced Features:

* Automatic Device Discovery

* Batch Configuration

* Batch Firmware Upgrading

* Intelligent Network Monitoring

* Abnormal Event Warnings

* Unified Configuration

* Reboot Schedule

MIBs:

* MIB II (RFC1213)

* Bridge MIB (RFC1493)

* P/Q-Bridge MIB (RFC2674)

* Radius Accounting Client MIB (RFC2620)

* Radius Authentication Client MIB (RFC2618)

* Remote Ping, Traceroute MIB (RFC2925)

* Support TP-Link private MIBs

* RMON MIB(RFC1757, rmon 1,2,3,9)

MANAGEMENT

Omada App:

Yes, through

* Omada Cloud-Based Controller

* OC300

* OC200

* Omada Software Controller

Centralized Management:

* Omada Cloud-Based Controller

* Omada Hardware Controller (OC300)

* Omada Hardware Controller (OC200)

* Omada Software Controller

Cloud Access:

Yes, through

* Omada Cloud-Based Controller

* OC300

* OC200

* Omada Software Controller

Zero-Touch Provisioning:

Yes. Requiring the use of Omada Cloud-Based Controller

Management Features:

* Web-based GUI

* Command Line Interface (CLI) through telnet

* SNMPv1/v2c/v3

* SNMP Trap/Inform

* RMON (1,2,3,9 groups)

* SDM Template

* DHCP/BOOTP Client

* Dual Image, Dual Configuration

* CPU Monitoring

* Cable Diagnostics

* EEE

* SNTP

* System Log

OTHERS

Certification:

CE, FCC, RoHS

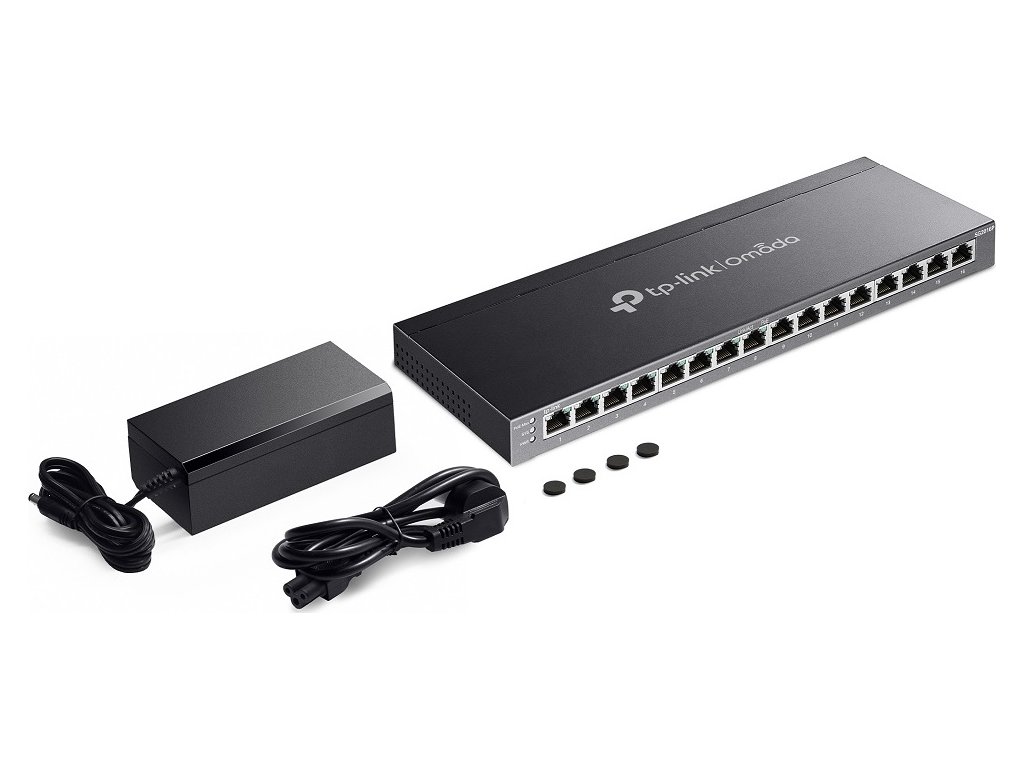

Package Contents:

* TL-SG2016P

* Power Adapter

* Installation Guide

* Rubber Feet

System Requirements:

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment:

* Operating Temperature: 0–40 ? (32–104 ?);

* Storage Temperature: -40–70 ? (-40–158 ?)

* Operating Humidity: 10–90% RH non-condensing

* Storage Humidity: 5–90% RH non-condensing
