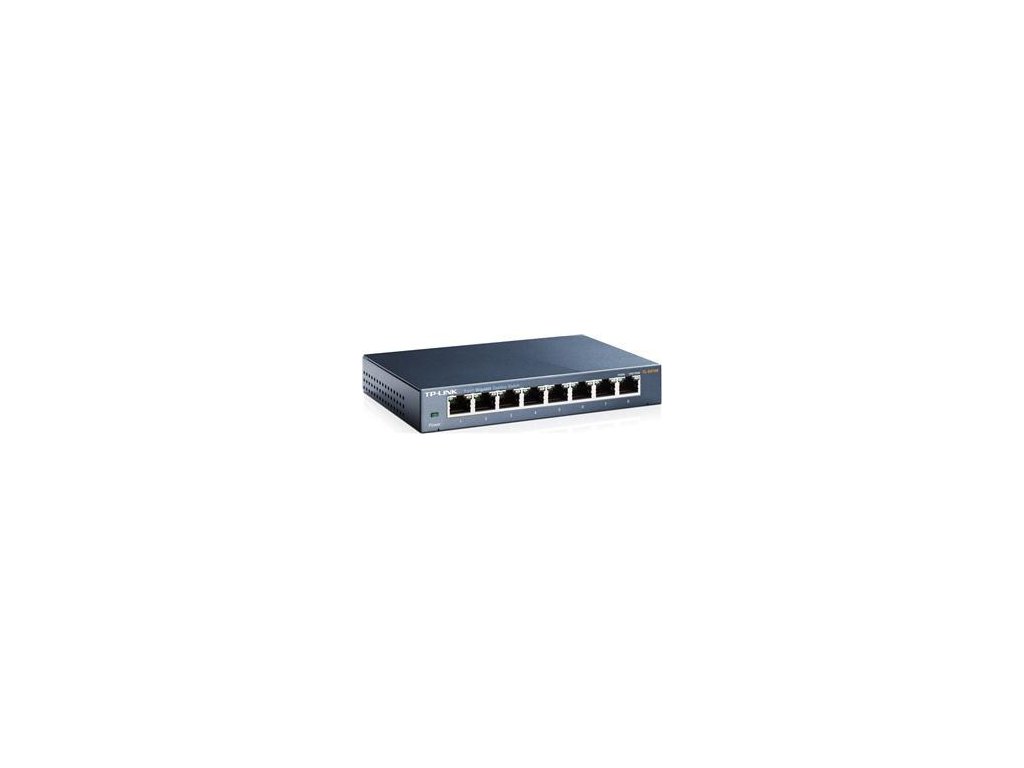

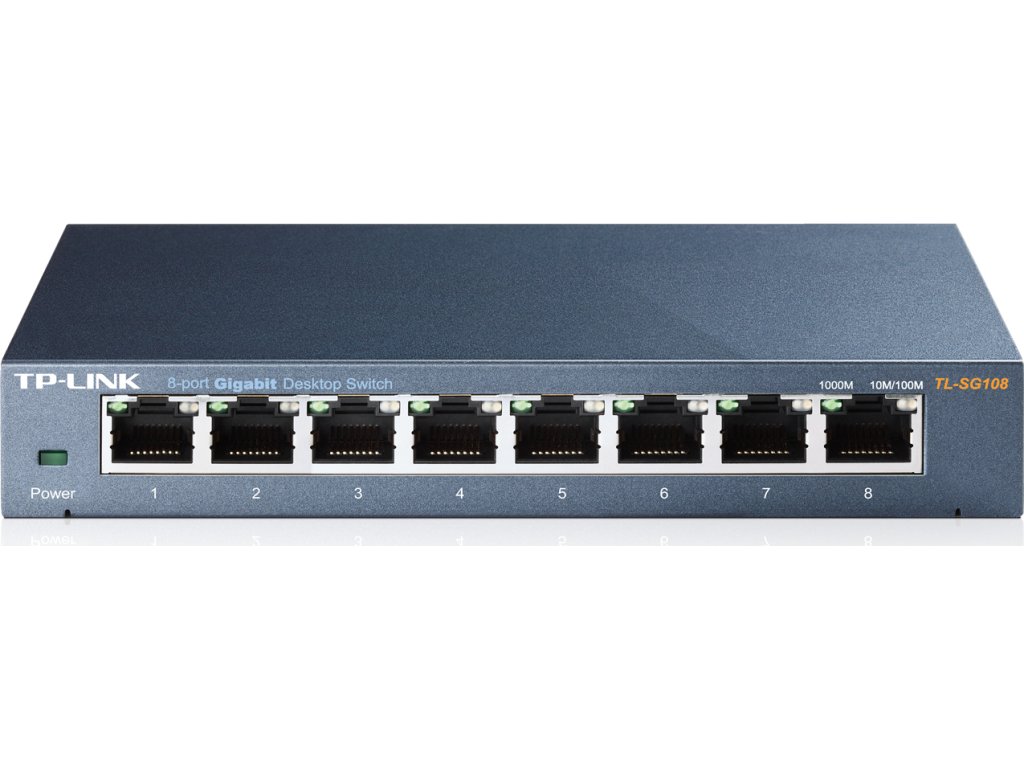

TP-Link TL-SG108/ switch 8x 10/100/1000Mbps/ kovový/ GREEN
Kód: TL-SG108
Podrobný popis
8-Port 10/100/1000Mbps Desktop Switch
OVERVIEW
The TP-LINK 8 10/100/1000Mbps Desktop Switch TL-SG108 provides you an easy way to make the transition to gigabit Ethernet. Increase the speed of your network server and backbone connections, or make gigabit to the desktop a reality. Moreover, TL-SG108 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG108 can save up to 72% of the power consumption, making it an eco-friendly solution for your home or office network.
FEATURES
• Innovative energy-efficient technology saves power up to 72%
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
• Steel design, desktop or wall-mounting design
• Supports QoS (IEEE 802.1p) function
• Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
• 9K Jumbo frame improves performance of large data transfers
• Auto-MDI/MDIX eliminates the need for crossover cables
• Supports MAC address auto-learning and auto-aging
• Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware
• Fanless design ensures quiet operation
• Plug and Play design simplifies installation
HARDWARE FEATURES
Standards and Protocols
• IEEE 802.3/802.3u/ 802.3ab/ 802.3x
• CSMA/CD
Interface
• 8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
External Power Supply
• 100-240VAC, 50/60Hz
Dimensions (W X D X H)
• 158 x 101 x 25 mm
Fan Quantity
• Fanless
LED Indicator
• System Power
• Link, Speed and activity indicators per port built into each RJ-45 port
SOFTWARE FEATURES
Advanced Features
• Green Technology,saving power up to 72%
• 802.3X Flow Control
• Supports QoS (IEEE802.1P)
Transfer Method
• Store and Forward
OTHERS
Certification
• CE, FCC ,RoHS
Package Contents
• 8-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• User Guide
System Requirements
• Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, Mac® OS, NetWare®, UNIX® or Linux.
Související odkazy
Související dokumenty
Dodatočné parametre
| Kategória: | Sieťové Prvky |
|---|---|
| Záruka: | 60 měsíců |
| Hmotnosť: | 0.522 kg |
| EAN: | 6935364021153 |
| Barva: | černá |
| Bez ventilátorů: | Ano fanless |
| Délka záruky: | 60 měsíce |
| Délka záruky IČO: | 60 měsíce |
| Displej: | ne |
| Gigabit LAN: | Ano |
| Hmotnost: | 0.52200 kg |
| Homologace EN50155: | ne |
| IGMP: | Ano |
| Kapacita sběrnice: | 16 Gbps |
| LAN: | Ano |
| LED indikace: | Ano |
| Management: | ne |
| Napájení: | 5 V |
| Napájení zařízení: | externí adaptér |
| Normy: | IEEE 802.3 / 802.3u / 802.3ab/ 802.3x /802.1p |
| Podpora PoE: | ne |
| PoE vstup: | ne |
| PoE výstup: | ne |
| Použití v exteriéru: | ne |
| Použití v interiéru: | Ano |
| Provedení: | samostatně stojící, na zeď |
| Provozní teplota max.: | 40 °C |
| Provozní teplota min.: | 0 °C |
| RJ-45 (počet): | 8 |
| Rozměry: | 158 × 101 × 25 mm |
| RS-232 port: | ne |
| Rychlost portů: | 1 Gb/s |
| Rychlost směrování: | 11,9 Mpps |
| Shoda: | CE, FCC, RoHS |
| Stohovatelnost: | ne |
| Upřesnění typu: | Switch |
| Vrstva OSI: | L2 |
| Základní funkce: | MAC Address Auto-Learning and Auto-Aging |
| Záruka: | 60 měsíců |
| Zpracováno: | Schváleno |
