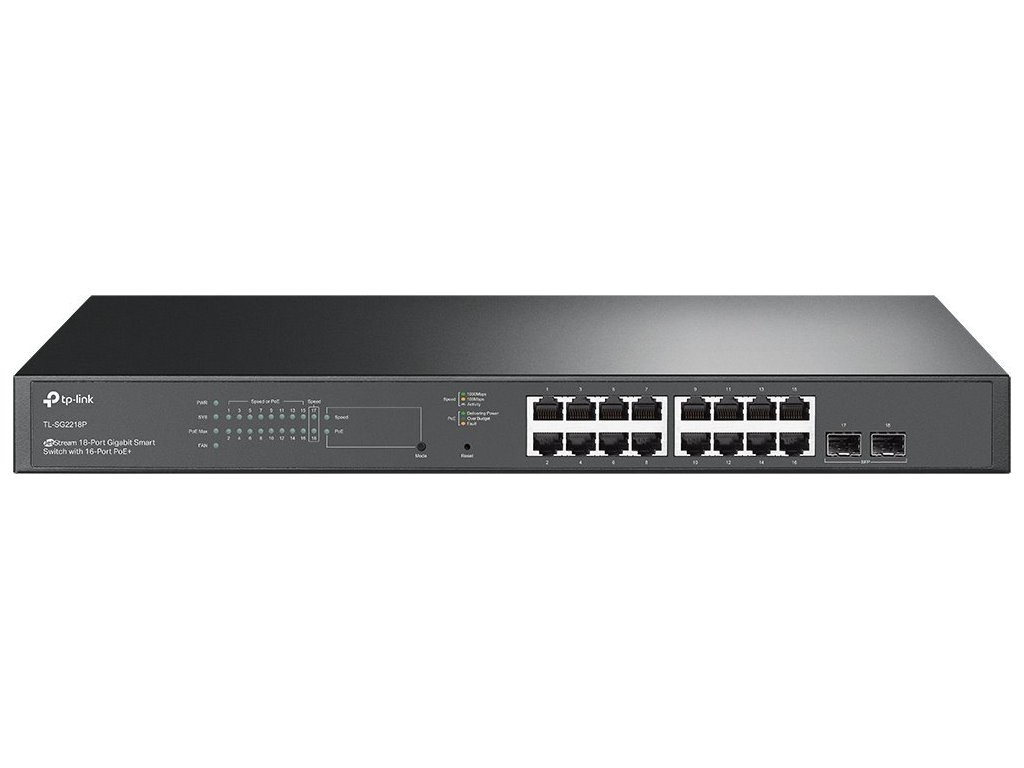

TP-Link TL-SG2218P - 18portový gigabitový inteligentní switch JetStream s 16 porty PoE+/ 2x Gigabit SFP Sloty

Podrobný popis

TP-Link switch TL-SG2218

18portový gigabitový inteligentní switch JetStream s 16 porty PoE+

Platforma softwarově definovaných sítí Omada (SDN) integruje síťová zařízení, včetně přístupových bodů, switchů a bran, a poskytuje 100% centralizovanou cloudovou správu.

Technická specifikace

HARDWARE FEATURES

Standards and Protocols

*IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

*16× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

*2× Gigabit SFP Slots

Network Media

*10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

*100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)

*1000BASE-X: MMF, SMF

Fan Quantity

*1

Power Supply

*100-240V AC, 50/60Hz

PoE Ports (RJ45)

*Standard: 802.3at/af compliant

*PoE+ Ports: 16 Ports

*PoE Power Budget: 150 W*

Dimensions ( W x D x H )

*17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)

Mounting

*Rack Mountable

Max Power Consumption

*181.4 W (110 V/60 Hz) (with 150 W PD connected)

*178.3 W (220 V/50 Hz) (with 150 W PD connected)

Max Heat Dissipation

*619.06 BTU/hr (110 V/60 Hz) (with 150 W PD connected)

*608.52 BTU/hr (220 V/50 Hz) (with 150 W PD connected)

PERFORMANCE

Switching Capacity

*36 Gbps

Packet Forwarding Rate

*26.78 Mpps

MAC Address Table

*8K

Packet Buffer Memory

*4.1 Mbit

Jumbo Frame

*9 KB

Software features

Quality of Service(QoS)

*802.1p CoS/DSCP priority

*8 priority queues

*Priority Schedule Mode

*Queue Weight Config

*Bandwidth Control

*Smoother Performance

*Storm Control

L2 and L2+ Features

*16 IP Interfaces

*Static Routing

*DHCP Server

*DHCP Relay

*Static ARP

*Proxy ARP

*Gratuitous ARP

*Link Aggregation

*Spanning Tree Protocol

*Loopback Detection

*Flow Control

*Mirroring

*802.1ab LLDP/ LLDP-MED

VLAN

*VLAN Group

*802.1Q tag VLAN

*MAC VLAN: 12 Entries

*Protocol VLAN

*GVRP

*Voice VLAN

Access Control List(ACL)

*Support up to 230 entries

*Time-Range

*Time-based ACL

*MAC ACL

*IP ACL

*IPv6 ACL

*Combined ACL

*Rule Operation

*Policy Action

*ACL Rules Binding

*Actions for flows

Security

*AAA

*802.1X

*IP/IPv6-MAC Binding

*IP Source Guard

*IPv6 Source Guard

*DoS Defend

*Static/Dynamic/Permanent Port Security

*Broadcast/Multicast/Unicast Storm Control

*Port Isolation

*Secure web management through HTTPS with SSLv3/TLS 1.2

*Secure Command Line Interface (CLI) management with SSHv1/SSHv2

*IP/Port/MAC based access control

Management

*Omada App

*Cloud Access

Others

Certification

*CE, FCC, RoHS

Package Contents

*TL-SG2218P

*Power Cord

*Installation Guide

*Rackmount Kit

*Rubber Feet

System Requirements

*Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment

*Operating Temperature: 0–50 ? (32–122 ?);

*Storage Temperature: -40–70 ? (-40–158 ?)

*Operating Humidity: 10–90% RH non-condensing

*Storage Humidity: 5–90% RH non-condensing
